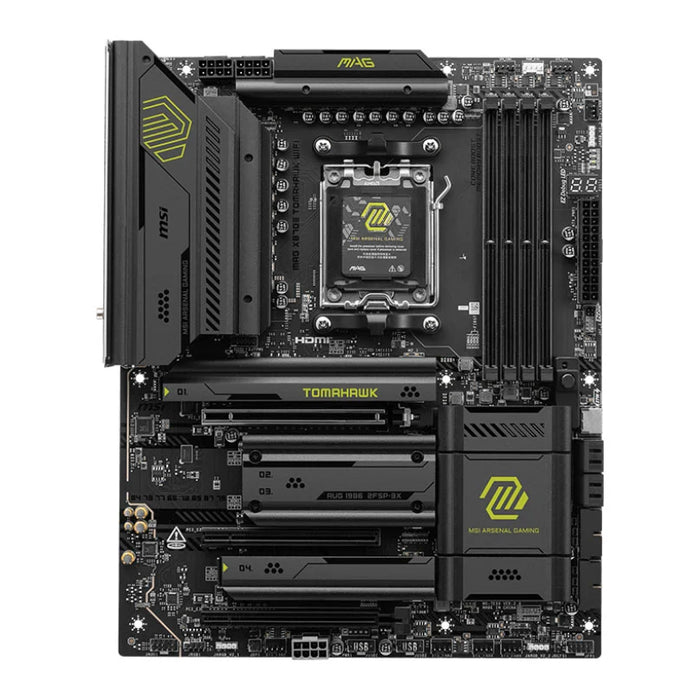

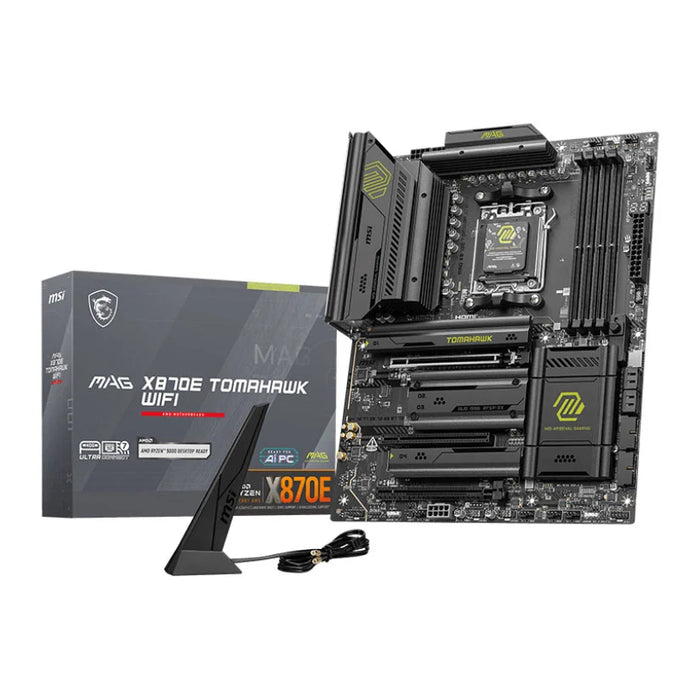

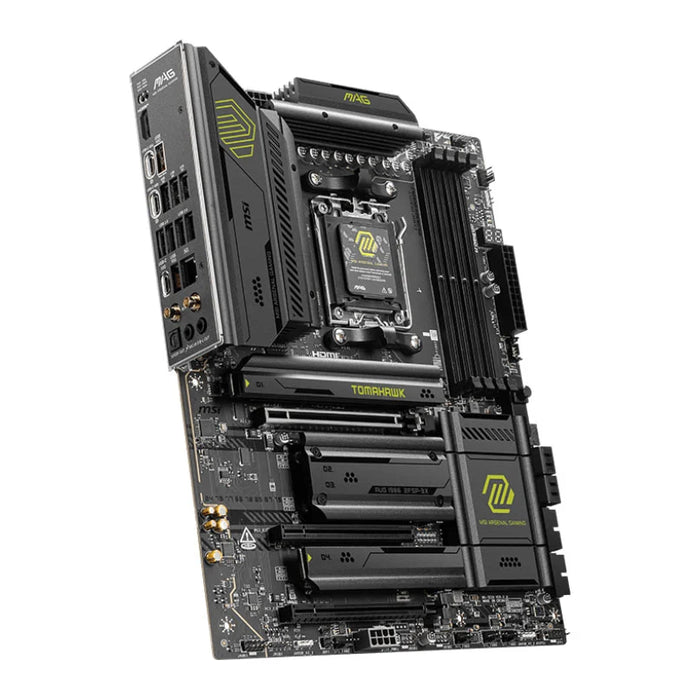

MSI MAG X870E TOMAHAWK WiFi AM5 DDR5 PCIe 5.0 ATX Motherboard
Buy Now and earn 490 Loyalty Points
The MSI MAG X870E TOMAHAWK WiFi is a high-performance ATX motherboard built for AMD Ryzen 9000 and 7000 series processors on the AM5 platform. Engineered for enthusiasts and power users, it combines robust power delivery, next-generation connectivity, and comprehensive overclocking support — all in a clean, battle-ready aesthetic.
Platform & Processor Support
Designed around AMD's X870E chipset, this board supports the full AM5 socket lineup including Ryzen 9000 and 7000 series CPUs. The 18+2+1 phase power design with 105A SPS MOSFETs ensures stable delivery under sustained workloads and overclocking sessions.
Memory
Four DDR5 DIMM slots support up to 256GB of DDR5 memory with speeds up to 8200+ MHz (OC). AMD EXPO and Intel XMP 3.0 profiles are supported for one-click memory overclocking.
Expansion & Storage
Two PCIe 5.0 x16 slots deliver full bandwidth for the latest discrete GPUs and PCIe 5.0 NVMe drives. Three M.2 slots (including PCIe 5.0 x4 and PCIe 4.0 x4) provide fast, flexible storage options, complemented by four SATA 6Gb/s ports.
Connectivity

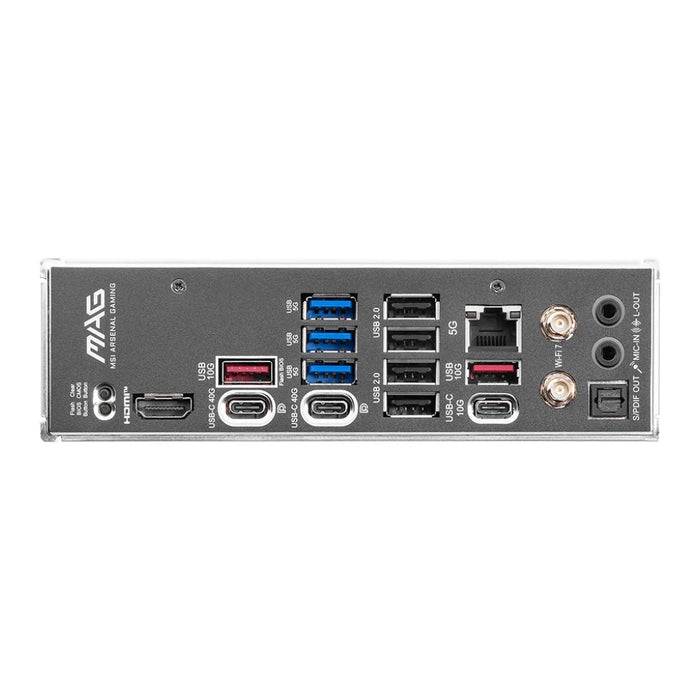

Onboard Wi-Fi 7 (802.11be) and 2.5G LAN ensure fast, reliable wired and wireless networking. The rear I/O panel includes USB4 (40Gbps), USB 3.2 Gen 2x2 (20Gbps), and multiple USB-A and USB-C ports for comprehensive peripheral support.
Audio & Display
The Realtek ALC4080 audio codec delivers high-fidelity sound with a 120dB SNR output. DisplayPort 2.1 output via the integrated AMD Radeon graphics (when using APUs) supports up to 8K resolution.
Specifications
| Specification | Detail |
|---|---|
| Chipset | AMD X870E |
| Socket | AM5 (LGA1718) |
| CPU Support | AMD Ryzen 9000 / 7000 Series |
| Form Factor | ATX (305 x 244 mm) |
| Memory Slots | 4x DDR5 DIMM |
| Max Memory | 256GB |
| Memory Speed | Up to 8200+ MHz (OC), EXPO & XMP 3.0 |
| PCIe Slots | 2x PCIe 5.0 x16, 1x PCIe 4.0 x1 |
| M.2 Slots | 3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) |
| SATA Ports | 4x SATA 6Gb/s |
| USB (Rear I/O) | USB4 40Gbps, USB 3.2 Gen 2x2 (20Gbps), USB 3.2 Gen 2 (10Gbps), USB 2.0 |
| Networking | Wi-Fi 7 (802.11be), Bluetooth 5.4, 2.5G LAN (Realtek RTL8125BG) |
| Audio | Realtek ALC4080, 7.1 Surround, 120dB SNR |
| Display Output | 1x DisplayPort 2.1 (APU only) |
| Power Delivery | 18+2+1 Phase, 105A SPS MOSFETs |
| Fan Headers | 7x (1x CPU, 1x CPU_OPT/Water Pump, 5x System) |
| RGB | 1x JARGB_V2, 2x JRGB headers + onboard ARGB lighting |
| BIOS | Dual BIOS, Click BIOS 5 |
| Condition | Brand New |
| Warranty | 24 months |
In the Box
- MSI MAG X870E TOMAHAWK WiFi Motherboard
- Wi-Fi Antenna
- SATA Cables (x2)
- M.2 Screws & Standoffs
- Quick Installation Guide
- Driver & Utility USB / Download Card
