Ubiquiti U-POE Universal 802.3af 48V 15W Power POE Injector-Networking-Gigante Computers

Ubiquiti U-POE Universal 802.3af 48V 15W Power POE Injector

by UBIQUITI
£10.95 - £10.95
£10.95
£10.95 - £10.95
£10.95
SKU U-POE
Availability:
in stock, ready to be shipped

Order now and get it by 9 October and 11 October

Shipping details
Orders placed before 2pm on working days are processed sooner. Orders placed after the cutoff, at weekends, or on UK bank holidays are processed on the next working day. Delivery estimates and shipping costs are confirmed at checkout and may vary by destination, stock availability, weekends, and bank holidays.

Buy Now and earn 20 Loyalty Points

  • Product Type: POE Injector
  • POE Capability: 48v
  • Device Support: Universal

PoE Adapter (15W)

Dimensions
86 x 46 x 33 mm (3.4 x 1.8 x 1.3")

Weight
100 g (3.5 oz)

Output Voltage
48V DC @ 0.32A

LAN Activity Indicator
No

Gigabit LAN Port
Yes

Remote Reset Capability
No

Reset Button
No

Rated Voltage
100—240V AC @ 50/60Hz

Input Current
500mA max.

Inrush Current
<100A peak at 25oC

Efficiency
84.25%+

Output Ripple
200mV p-p

Switching Frequency
65 kHz

Line Regulation
< 3%

Load Regulation
< 5%

2-Pair Powering
Pins 4, 5 (+) and 7, 8 (-)

4-Pair Powering
No

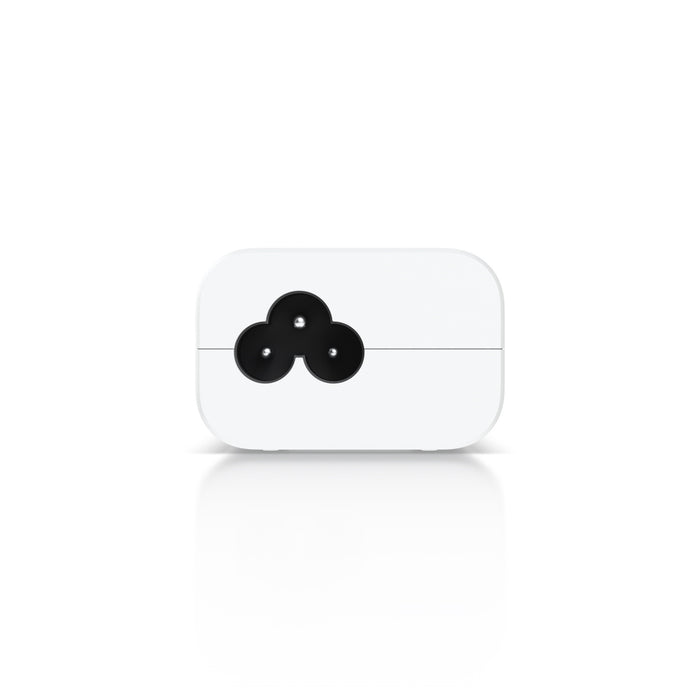

AC Connector
IEC-320 C6

Data In / POE
RJ45 Shielded Socket

Surge Protection
Difference and common mode

Clamping Protection
11V data, 60V power

Max. Surge Discharge
1500A power

Peak Pulse Current
36A data

Shunt Capacitance
< 5pF Data

Response Time
< 1ns

Certifications
CE, FCC, IC, UL
