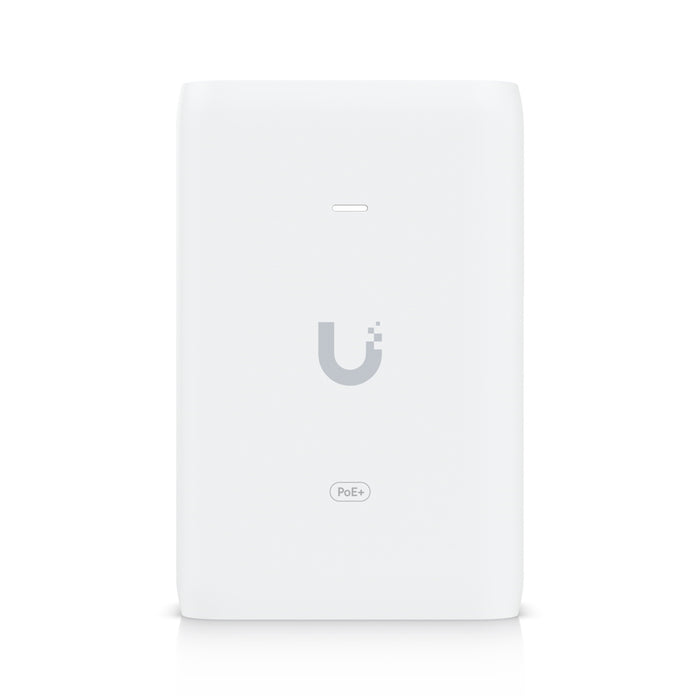

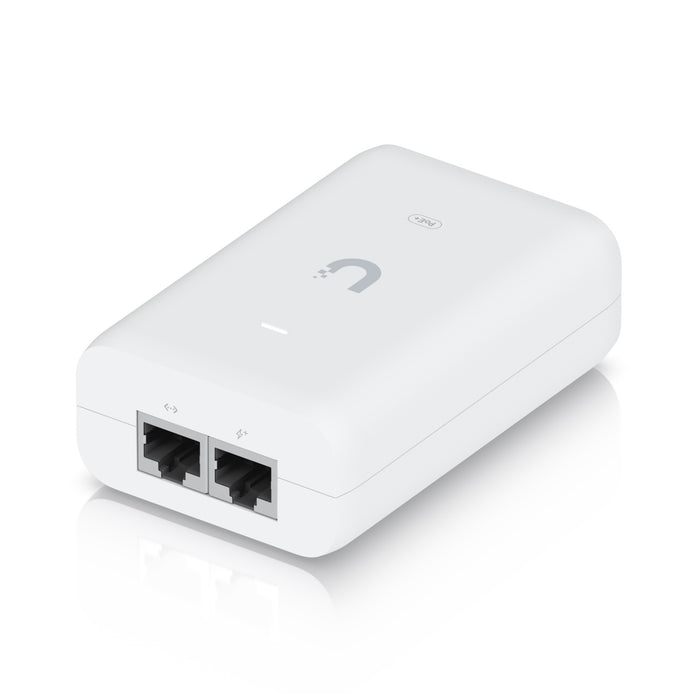

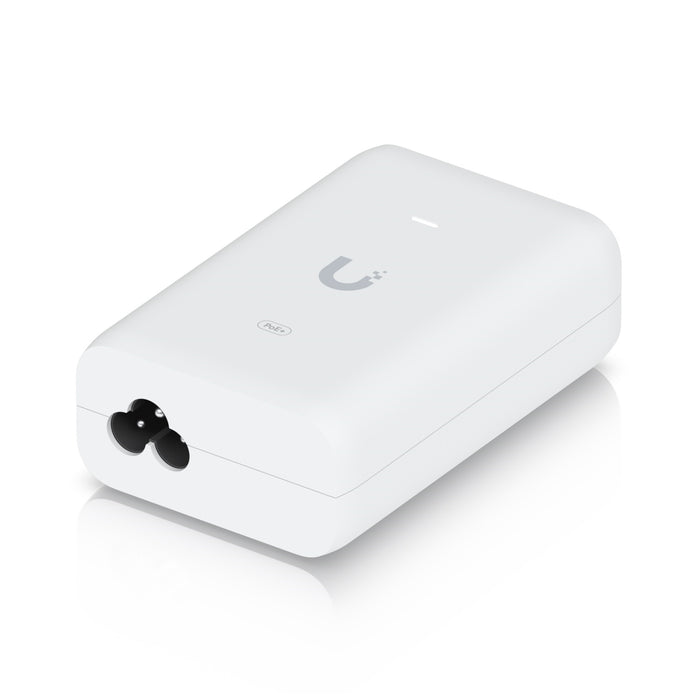

Ubiquiti U-POE+ Universal 802.3at 48V 30W Power POE+ Injector

• Product Type: POE Injector
• POE Capability: 48v
• Device Support: Universal

PoE+ Adapter (30W)

Dimensions
93 x 62 x 35 mm (3.7 x 2.4 x 1.4")

Weight
156 g (5.5 oz)

Output Voltage
48V DC @ 0.65A

LAN Activity Indicator
No

Gigabit LAN Port
Yes

Remote Reset Capability
No

Reset Button
No

Rated Voltage
100—240V AC @ 50/60Hz

Input Current
0.75A max.

Inrush Current
<100A peak at 26oC

Efficiency
87%

Output Ripple
1% Max.

Switching Frequency
70 kHz max.

Line Regulation
< 3%

Load Regulation
< 5%

2-Pair Powering
Pins 4, 5 (+) and 7, 8 (-)

4-Pair Powering
No

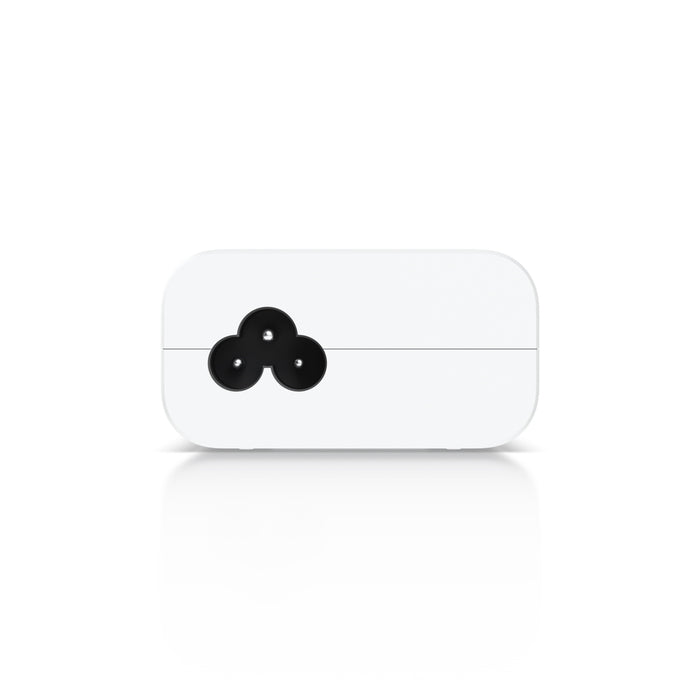

AC Connector
IEC-320 C6

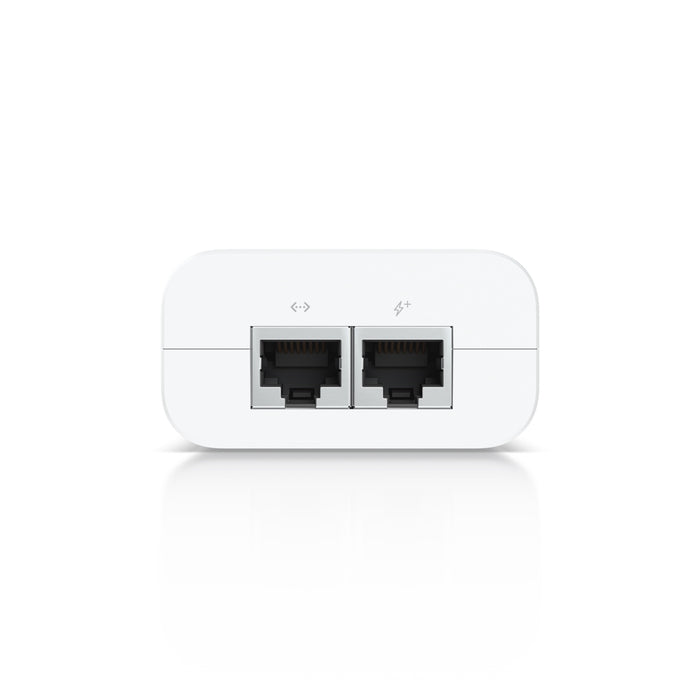

Data In / POE
RJ45 Shielded Socket

Surge Protection
Difference and common mode

Clamping Protection
11V data, 60V power

Max. Surge Discharge
1500A power

Peak Pulse Current
36A data

Shunt Capacitance
< 5pF Data

Response Time
<1 ns

Certifications
CE, FCC, IC, UL
