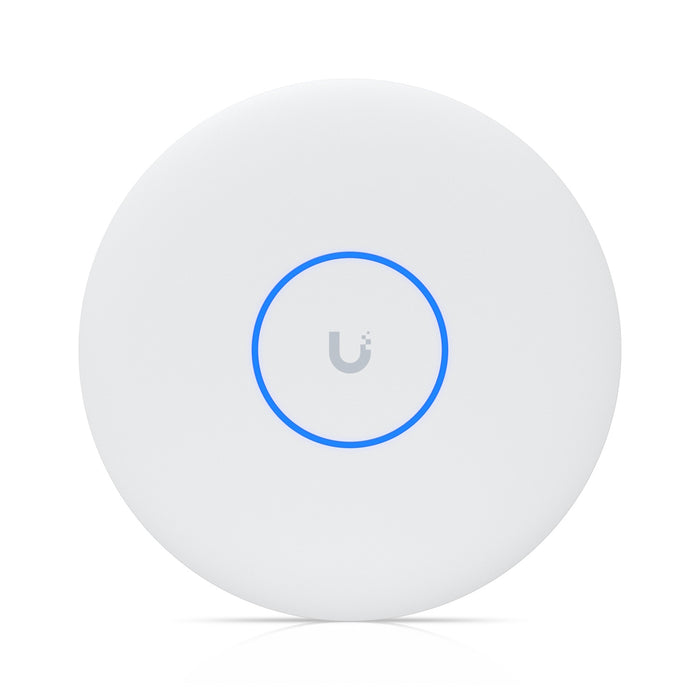

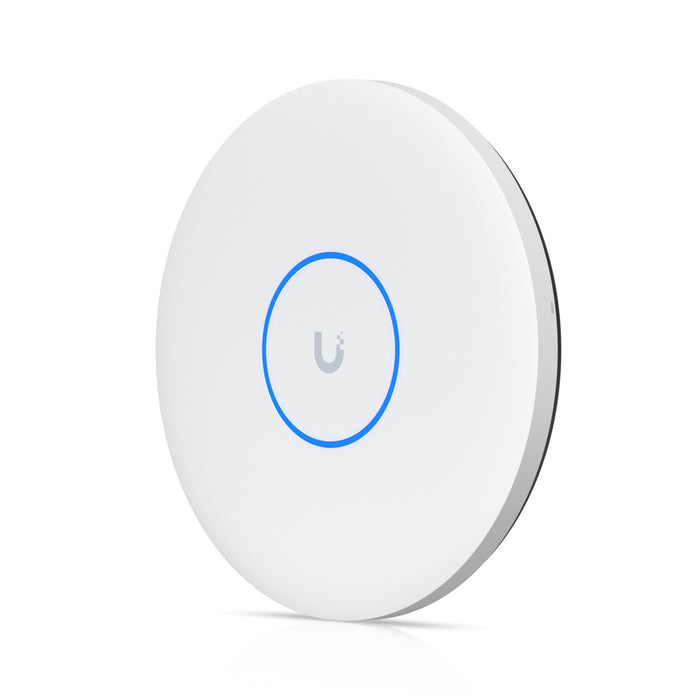

Ubiquiti U7-PRO-XGS UniFi 7 Pro XGS Celing Mounted 8 Stream WiFi 7 6GHz 10GbE Access Point

• Type: High Density
• Speed: 8600Mbps
• Indoor or Outdoor: Indoor
• POE Capability: 48v
• Pack Size: Single

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

WiFi 7 with 6 GHz support
8 spatial streams
Real-time spectral analysis for enhanced channel selection
160 m2 (1,750 ft2) coverage
500+ connected devices
Powered using PoE++
10 GbE uplink

Dimensions
d215 x 32.5 mm
(d8.5 x 1.3")

WiFi Standard
WiFi 7

Spatial Streams
8

Coverage Area
160 m2 (1,750 ft2)

Max. Client Count
500+

Uplink
10 GbE

Mounting
Ceiling, Wall
(Lite Mount Included)

Power Method
PoE++

MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)

5 GHz
4 x 4 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
6 GHz
5.8 Gbps (BW320)

5 GHz
8.6 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)

Antenna Gain
6 GHz
6 dBi

5 GHz
6 dBi

2.4 GHz
4 dBi

Max. TX Power
6 GHz
24 dBm

5 GHz
29 dBm

2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Zero-Wait DFS
Yes

Advanced Radio Management
Yes

Real-Time Spectral Analysis
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Max. Power Consumption
29W

Supported Voltage Range
42.5 - 57V DC

Networking Interface

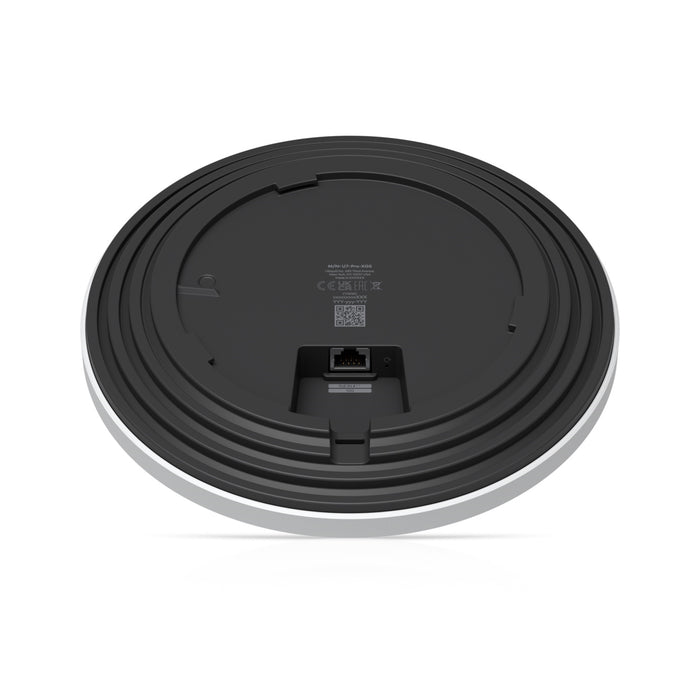

(1) 10 GbE RJ45 port

Weight
800 g (1.8 lb)

Management
Ethernet

Enclosure Material
UV-stabilized polycarbonate, aluminum alloy

Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)

LEDs
System

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Certifications
CE, FCC, IC
