Ubiquiti UACC-POE+-2.5G Universal 802.3at 2.5G 30W Power POE+ Injector

• Product Type: POE Injector
• POE Capability: 48v
• Device Support: Universal

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Delivers up to 30W of PoE+
Surge, peak pulse, and overcurrent protection

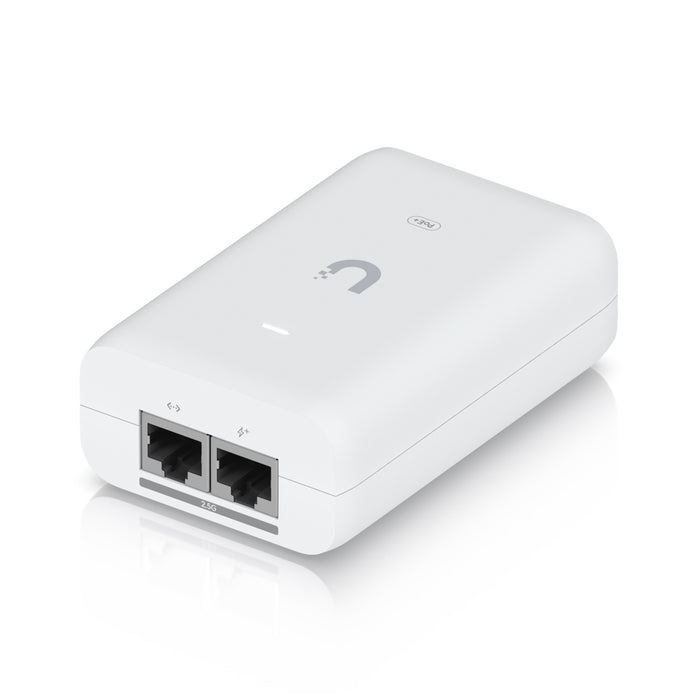

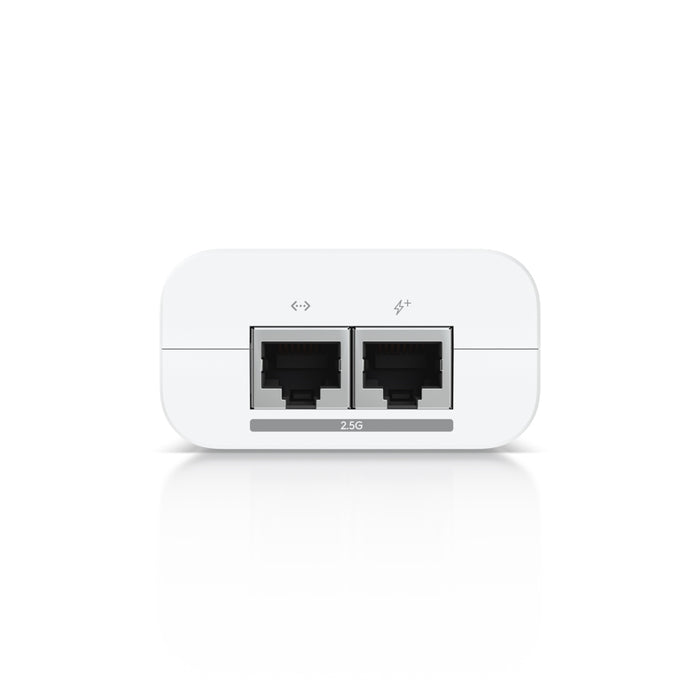

Contains RJ45 data input, AC cable with earth ground, and PoE+ output

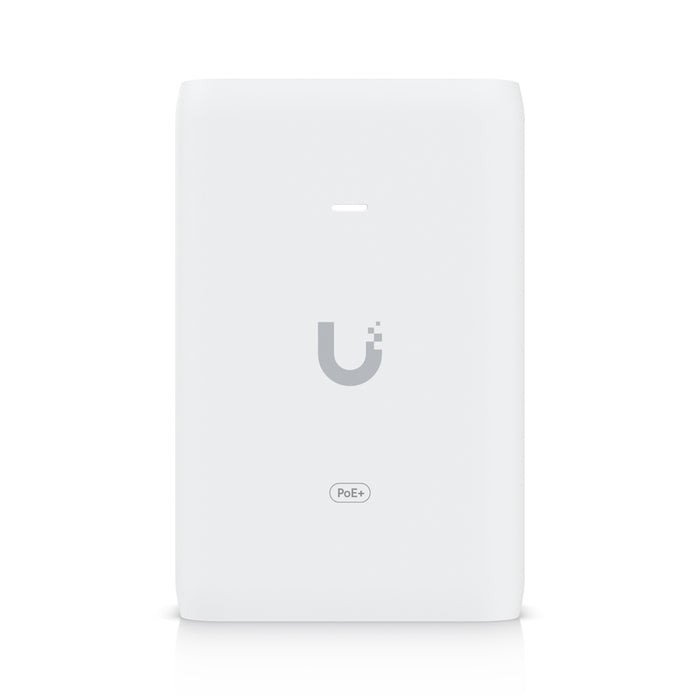

LED indicator for status monitoring

Dimensions
93 x 62 x 35 mm (3.7 x 2.4 x 1.4")

Weight
156 g (5.5 oz)

Output Voltage
48V DC @ 0.65A

LAN Activity Indicator
No

Gigabit LAN Port
Yes, up to 2.5 GbE

Remote Reset Capability
No

Reset Button
No

Rated Voltage
100—240V AC @ 50/60Hz

Input Current
0.75A max.

Inrush Current
<150A peak @ 230V AC

Efficiency
>87%

Output Ripple
1% max.

Switching Frequency
65 kHz max.

Line Regulation
< 1%

Load Regulation
< 3%

2-Pair Powering
Pins 4, 5 (+) and 7, 8 (-)

4-Pair Powering
No

Data In / POE
RJ45 shielded socket

Surge Protection
Difference and common mode

Clamping Protection
11V data, 60V power

Max. Surge Discharge
1500A power

Peak Pulse Current
36A data

Shunt Capacitance
<5 pF Data

Response Time
<1 ns

Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
