Ubiquiti UniFi Cloud Gateway Ultra - UCG-Ultra

• Ports: 4
• Firewall: Yes
• Rack Mountable: No

Ubiquiti UniFi Cloud Gateway Ultra - UCG-Ultra

Key Features
Runs UniFi Network for full-stack network management
Manages 30+ UniFi Network devices and 300+ clients
1 Gbps routing with IDS/IPS
Multi-WAN load balancing
0.96" LCM status display
USB-C powered (UK adapter included)

The Cloud Gateway Ultra (UCG-Ultra) offers unprecedented control and scalability for enterprise networks. This device is specifically designed to cater to the needs of businesses requiring robust, secure, and efficient network management. Its ability to manage extensive UniFi networks (over 30 devices and 300+ clients) makes it an ideal choice for growing enterprises.

The UCG-Ultra's 1 Gbps routing capability ensures fast, reliable data transfer, which is critical for operations requiring high bandwidth. The inclusion of IDS/IPS provides an added layer of security, safeguarding your network from intrusion and malicious attacks. The multi-WAN load balancing feature enhances connection reliability, optimizing internet traffic distribution to prevent downtime and ensure continuous network performance.

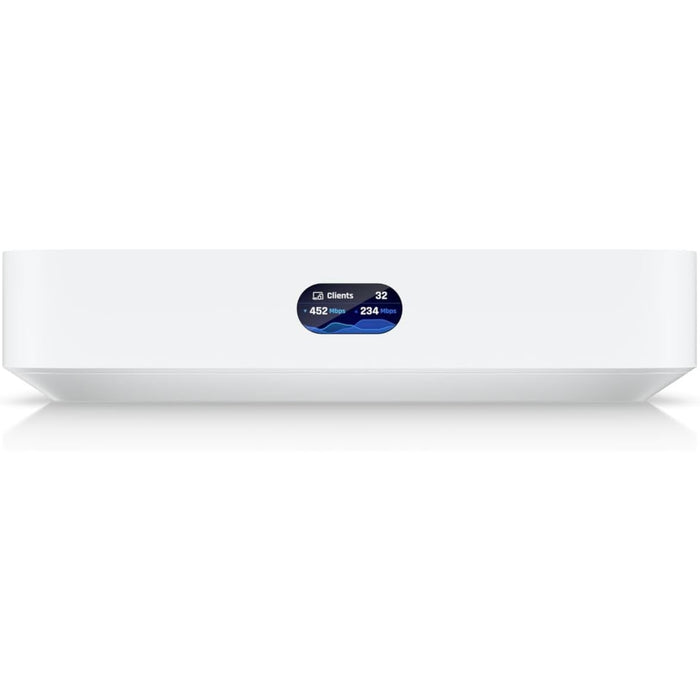

UCG-Ultra's compact design is complemented by a 0.96" LCM status display, offering a sleek, informative interface for real-time monitoring and quick status checks, all while maintaining a minimal footprint. The device's USB-C powered functionality ensures ease of use and compatibility with contemporary power standards.

Specifications

Mechanical

Weight &Dimensions
141.8 x 127.6 x 30 mm
520 g

Enclosure Material
Polycarbonate

Hardware

Processor
Quad-core ARM Cortex-A53 at 1.5 GHz

System Memory
3 GB DDR4

On-Board Storage
16 GB eMMC

Management Interface
Ethernet
Bluetooth

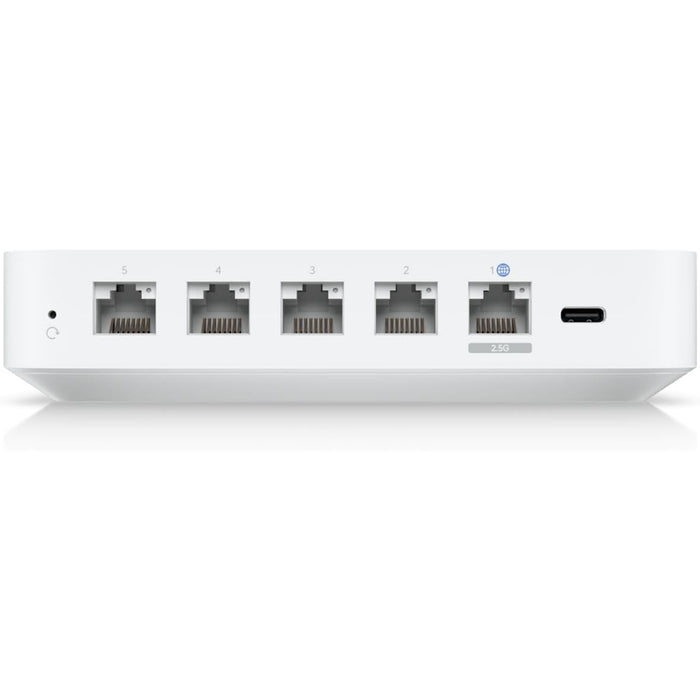

Networking Interface
LAN:
(4) GbE RJ45 ports
WAN:
(1) 1/2.5 GbE RJ45 port

IDS/IPS Throughput
1 Gbps

Power Method
USB type C (5V DC/3A)

Supported Voltage Range
100–240V AC

Max. Power Consumption
6.2W

LCM Display
0.96 status display

Button
Factory reset

Ambient Operating Temperature
-10 to 40° C (14 to 104° F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Gateway Features

Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting

Next-Generation Security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced Networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support

LEDs

Ethernet
Green: link/activity

Application Requirements

Mobile App
UniFi iOS: Version 10.12.0 and later
UniFi Android: Version 10.11.2 and later
